Xbox One S HDMI Port - Replacement HD Socket
Xbox One S HDMI Port - Replacement HD Socket
- Part no.
- P43299
- Fits
- Xbox One S
- Won't fit
- Xbox One original, Xbox One X, Xbox Series X / S - all use different sockets
- Skill
- Soldering (SMD)
- Stock
- In stock
Couldn't load pickup availability
Xbox One S HDMI Port - Replacement HD Socket
$12.99
Free shipping on orders over $35
Packed and tracked in 1-3 business days.
Not sure it fits? Send a photo of your board and we'll check before you order.
We list what it does NOT fit
Every part says which models it fits and which it does not, so you order once instead of guessing and returning.
Shipped since 2021
Orders are packed and tracked in one to three business days. Over 16,000 parts sent out since 2021 at a 4.9 rating across 2,448 reviews.
Read them on WhatnotAsk before you buy
Not sure this is the right part for your console? Send a photo of the board or the model number and you will get a straight answer.
Email usThe full rundown
Xbox One S starting up — light on, fan audible — but nothing reaching the TV? Shine a torch into the HDMI socket before you give up on the console. Bent, flattened or missing gold pins in there are the most common cause by a wide margin, and the board is usually perfectly fine.
It is almost always mechanical: a cable trodden on or knocked while the console is plugged in, levering the connector until a pin folds over.

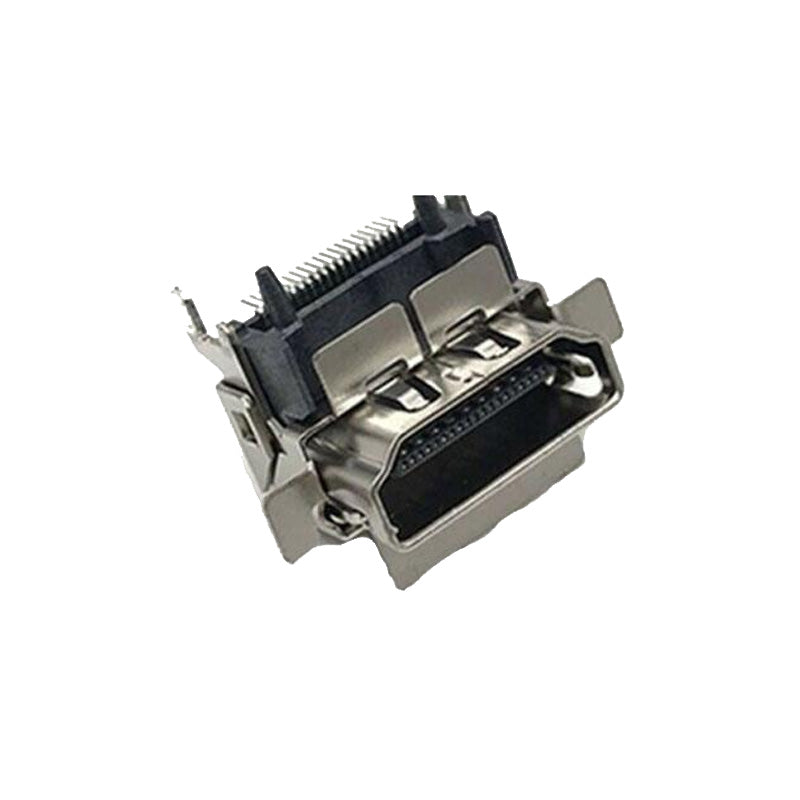

Brand new replacement HD socket, HDMI compatible.
This is board-level work. The old port has to be lifted with hot air and the new one reflowed onto the pads. A soldering iron alone will not do it — you need a rework station, flux and experience, or a shop that has them.
Fits: Xbox One S only.
Does not fit: the original Xbox One or the Xbox One X. All three consoles use different sockets, and we list each one separately. Also not Xbox Series X or S.
Try a different cable and another TV input first. A failing HDMI lead produces exactly the same black screen and costs nothing to rule out.
