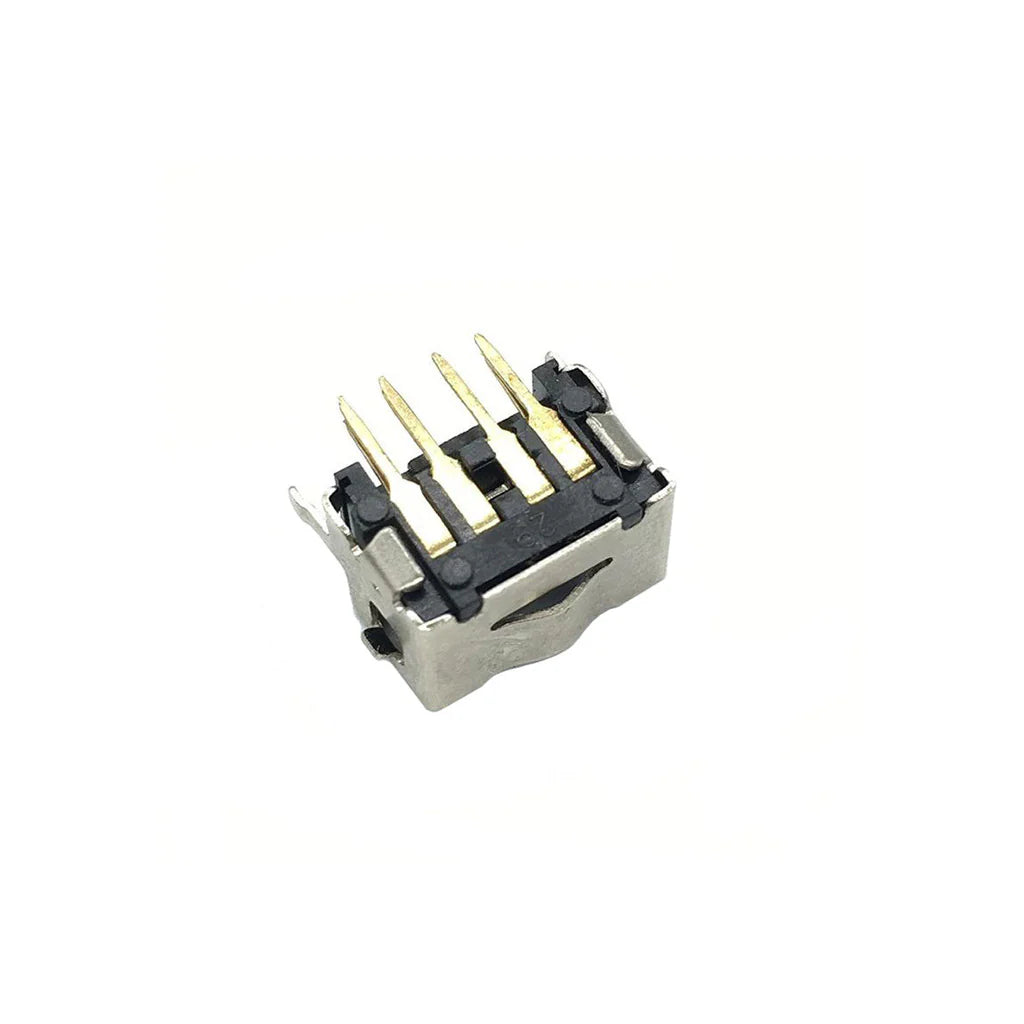

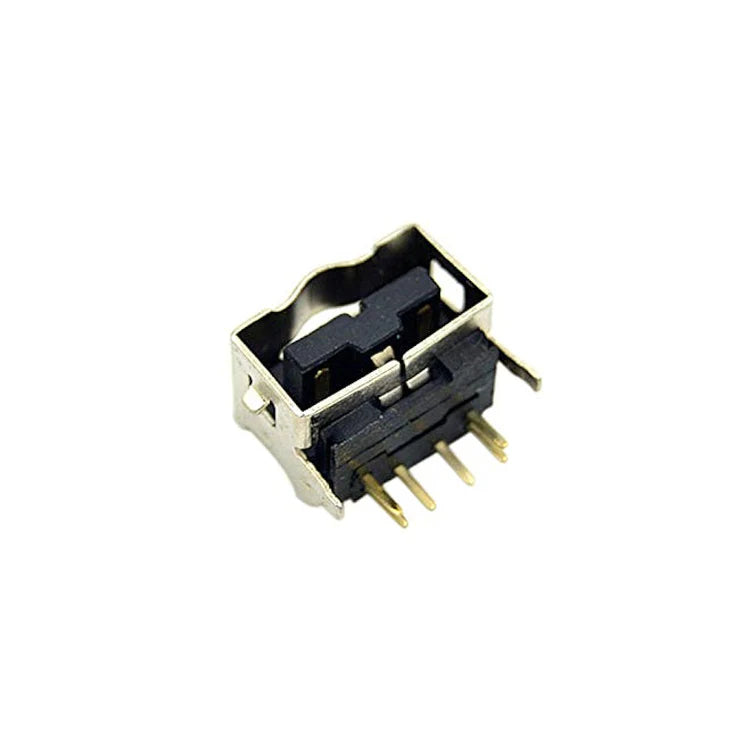

Game Boy Advance SP Charging Port - Replacement Power Jack (Solder-In)
Game Boy Advance SP Charging Port - Replacement Power Jack (Solder-In)
- Part no.
- P48903
- Type
- DC charging port / power jack
- Fits
- Game Boy Advance SP, both AGS-001 frontlit and AGS-101 backlit
- Won't fit
- Game Boy Micro, Nintendo DS, DS Lite, original Game Boy Advance
- Stock
- 5 left
On the shelf
Order today, arrives Nov 9 - Nov 16
It is here now. Packed and tracked within 3 business days, then 2 to 5 business days with USPS.
Business days, so weekends do not count. Public holidays can push the later date out. Shipping to Canada adds roughly 5 to 15 business days and customs can extend that, so we do not promise a date there.
Couldn't load pickup availability
Game Boy Advance SP Charging Port - Replacement Power Jack (Solder-In)
From $3.99
Free shipping on orders over $50
Not sure it fits? Send a photo of your board and we'll check before you order.
We list what it does NOT fit
Every part says which models it fits and which it does not, so you order once instead of guessing and returning.
Shipped since 2021
Over 16,000 parts sent out since 2021 at a 4.9 rating across 2,448 reviews. Every one of them packed here by hand.
Read them on WhatnotAsk before you buy
Not sure this is the right part for your console? Send a photo of the board or the model number and you will get a straight answer.
Email usThe full rundown
The charging port is the number one hardware failure on a Game Boy Advance SP. Two decades of the barrel plug being pushed in, pulled out and knocked sideways works the jack loose from the board, until the console only charges when the cable is held just right, then stops charging at all. This is a direct replacement charging port for the GBA SP. Solder it in and the system charges normally again.
What this fixes
- Orange charge light only comes on when the cable is wiggled or propped up
- No charge at all with a known-good charger
- Loose, rattling or wobbly port
- Bent or pushed-in port from a drop
- A console that runs fine on a charger but will not hold any charge
What you get
Sold as a single port. One is all a GBA SP needs.
Fits
- Game Boy Advance SP, model AGS-001, the frontlit original
- Game Boy Advance SP, model AGS-101, the brighter backlit revision
Both revisions use the same port, so you do not need to know which one you have before ordering.
Does not fit
The Game Boy Micro and the Nintendo DS and DS Lite use different ports. The original Game Boy Advance (AGB-001) runs on AA batteries and has no charging port at all.
How to install
- Open the SP. You need a tri-wing driver for the shell and a Phillips for the board screws.
- Disconnect the battery and lift the main board out.
- Desolder the old port and clean the pads with wick before fitting the new one.
- Seat the new port flush, solder the pins and the anchor tabs, and check for bridges.
- Reassemble and confirm the orange charge light with a charger plugged in.
Soldering job on a small board. If you are not set up for it, a local repair shop can usually fit this in under an hour with the part supplied.
Specs
| Part number | P48903 |
| Part type | DC charging port / power jack |
| Sold as | 1 piece |
| Install | Soldering required |
| Condition | New |
Common questions
Is it the port or the battery? If the orange light comes on when you hold the cable at an angle, it is the port. If it charges fine but dies quickly once unplugged, it is the battery. We stock GBA SP batteries separately.
Do I need to know if mine is AGS-001 or AGS-101? No. The port is the same in both.
Can I do this without soldering? No. The port is soldered directly to the main board, so there is no drop-in version of this repair.
Is this an original Nintendo part? No, it is a third-party replacement built to the original footprint.
